FP Reef "Fish Paradise Reef"
A suitable habitat for marine products is formed inside and around the FP Reef, and it functions effectively as a feeding ground, shelter, resting place, hiding place, etc. for various fish.
There are many achievements all over the country, and a wide variety of fish collections have been confirmed in artificial reef effect surveys.
Features of FP Reef
- Because of the concrete structure, the function as an artificial reef will be maintained for a long period of time.
- Because it is composed of surface structural members, it has a large stimulating area for fish and a large settlement area for prey organisms and exhibits a high gathering and breeding effect.

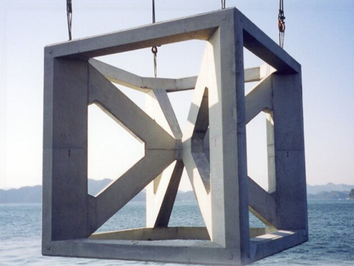

- The diagonal members (cross arms) that intersect at the center generate a complicated vortex around the area, which provides an excellent gathering effect.
- Since it is a strong block that is integrated with the site by the molding unit leasing method, it is possible to create an effective habitat close to a natural fish reef by installing it in random piles.
| Model |
2.00 type |
3.00 type | 3.25 type |
|
|
|
|
| Length× width×height(m) | 3.00×3.00×2.00 | 3.00×3.00×3.00 | 3.25×3.25×3.25 |
| Effective surface area(m2) | 35.44 | 49.89 | 56.63 |
| 空m3(m3) | 18.0 | 27.0 | 34.3 |
| Concrete volume(m3) | 2.76 | 4.87 | 5.43 |
| Airborne weight(t) | 6.62 | 11.69 | 13.03 |
| Formwork Area(m2) | 35.44 | 49.89 | 56.63 |
| Model | 3.30 type | 4.00-R type | 4.00 type |
|
|
|
|
| Length× Width×Height(m) | 3.30×3.30×3.30 | 4.00×4.00×4.00 | 4.00×4.00×4.00 |
| Effective surface area(m2) | 52.96 | 77.90 | 84.45 |
| 空m3(m3) | 35.9 | 64.0 | 64.0 |
| Concrete volume(m3) | 4.12 | 8.77 | 10.27 |
| Airborne weight(t) | 9.88 | 21.05 | 24.66 |
| Formwork Area(m2) | 53.18 | 77.90 | 84.45 |
| Model | 5.00-S type | 5.00 type |
![image](https://u.jimcdn.com/cms/o/s2aef0e6e6bd5067d/userlayout/img/fp500s.png?t=1760677841")
|
|
|
| Length× Width×Height(m) | 5.00×5.00×5.00 | 5.00×5.00×5.00 |
| Effective surface area(m2) | 128.64 | 128.27 |
| 空m3(m3) | 125.0 | 125.0 |
| Concrete volume(m3) | 16.26 | 17.98 |
| Airborne weight(t) | 39.02 | 43.15 |
| Formwork Area(m2) | 128.95 | 128.27 |
| Model | 1.5G | 1.5GB |
|
|
|
| Length× width×height(m) | 2.90×2.90×1.50 | 2.90×2.90×1.50 |
| Effective surface area(m2) | 34.59 | 35.07 |
| 空m3(m3) | 9.14 | 9.14 |
| Concrete volume(m3) | 4.017 | 5.028 |
| Airborne weight(t) | 9.641 | 12.067 |
| Formwork Area(m2) | 32.316 | 32.788 |
| Model | 1.6N |
|
|
| Length× width×height(m) | 1.60×1.60×1.60 |
| Effective surface area(m2) | 15.00 |
| 空m3(m3) | 4.10 |
| Concrete volume(m3) | 0.973 |
| Airborne weight(t) | 2.335 |
| Formwork Area(m2) | 15.004 |
| Model | FP super530 | FP super850 | FP super1030N |
|
|
|
|
| Length× width×height(m) | 4.20×4.20×5.27 | 6.76×6.76×10.30 | 6.76×6.76×10.30 |
| Effective surface area(m2) | 94.27 | 209.08 | 241.45 |
| 空m3(m3) | 52.5 | 163.7 | 144.5 |
| Concrete volume(m3) | 8.19 | 23.41 | 12.65 |
| Airborne weight(t) | 19.78 | 57.70 | 32.74 |
| Formwork Area(m2) | 92.07 | 184.90 | 195.05 |
| Model | FP Reef with Timber5.00P-B type | 3.25-P type |
|
|
|
| Length× width×height(m) | 5.00×5.00×5.00 | 3.25×3.25×3.25 |
| substrate volume(m3) | 125.0 | 34.3 |
| Airborne weight(t) | 64.863 | 15.437 |
・FP Reef with Thinned Wood
By installing concrete panels with thinned wood inside the FP reef, we enhance the aggregation and proliferation functions for fish.
The shaded space at the bottom of the panels serves as a habitat for fish that prefer dark areas, while the gaps among the upright wood at the top of the panels provide a habitat for fish that thrive in strong reef environments. Additionally, after the thinned wood decays, the perforations formed continue to function as shelters and nurseries.
| Model | FP3.25P-W |
|
|
| Length× width×height(m) | 3.25×3.25×3.25 |
| substrate volume(m3) | 34.3 |
| Airborne weight(t) | 14.472 |
・FP Reef with Culbase（Side panel）
| Model | CulbaseFP1.5G-NⅡ |
|
|
| Length× width×height(m) | 2.90×2.90×1.75 |
| substrate volume(m3) | 11.0 |
| Airborne weight(t) | 12.322 |
